36 Way 120V HD Distro

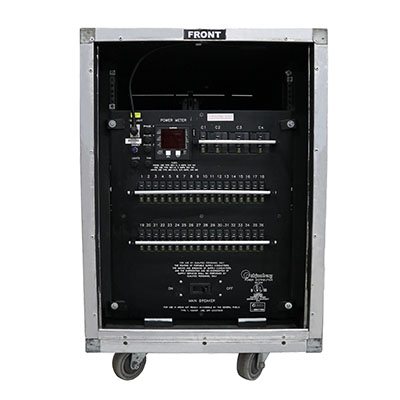

36 Way 120V HD Distro Front

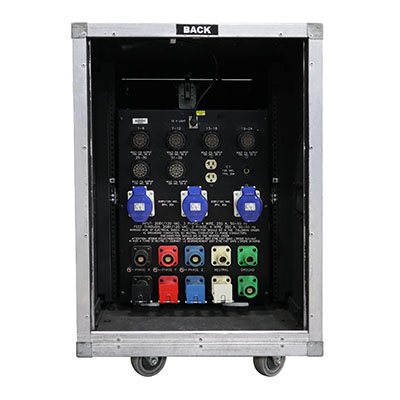

36 Way 120V HD Distro Back


36 Way 120V HD Distro
  • (6) Socapex outputs wired for 120V, 6 circuits per connector
  • (3) C5 30A 120/208V outputs
  • (1) L5-20, (1) L5-15 duplex convenience circuit
  • 250A main circuit breaker
  • E1016 Camlok Input and Thru. Reversed Ground and Neutral
  • Digital Multimeter for voltage and current measurements
  • 2 x Littlelites
  • Ships in a Half Distro Case

36 Way 120V HD Distro

PDF file icon Distro Circuit Phasing
