60 Way 208V HD Distro
60 Way 208V HD Distro

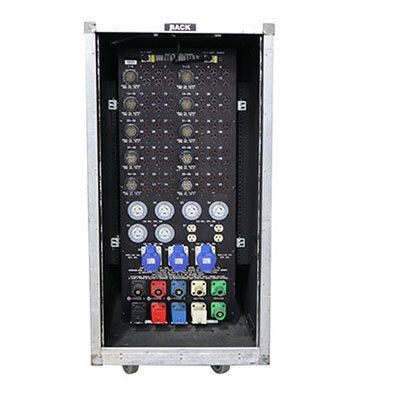

- Socapex outputs
- (3) C-5 Outputs
- (6) L5-20 Twistlock and (4) Edison accessory circuits

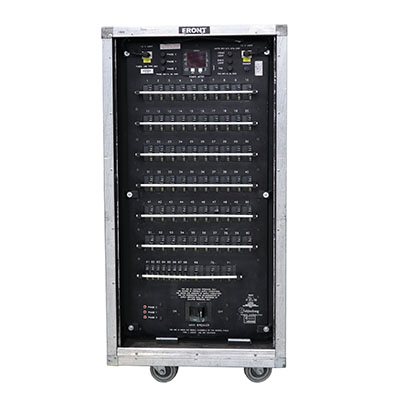

- 400A main breaker
- Camlok E1016 In and through, Reversed Ground and Neutral
- Metering points for voltage
- Built In Digital Voltage and Amperage Display
- LED Little Lites
- Ships in Tall Distro Case
- Christie Lites uses a unique 208v Socapex pin-out to avoid accidents if a 120v breakout is attached in error. Details are contained in the document entitled “Christie Lites Socapex 208v Pinout”. Christie Lites breakouts MUST be ordered when using non-Christie Lites cabling. Please note that Christie Lites 208v breakouts use a PowerCON TRUE1 connector. L6-15 or L6-20 adapters are available on request.
Weight:
60 Way 208V HD Distro in rack: 373 lbs
