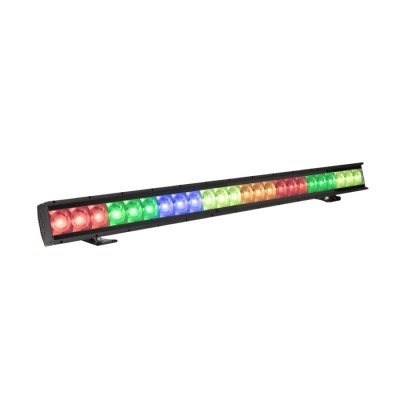

KL Batten 72


KL Batten 72

Features:
  • 61,275 (Integrating Sphere) Total Lumen Output
  • (24) x 100W RGBMA LEDs
  • CMY Emulation
  • 16bit Fully Variable CCT 2400K - 8500K
  • Beam Angle: 82° x 22°
  • Field Angle: 97° x 53°
  • Full Pixel Control
  • Electronic Dimmer and Strobe
  • Variable 16-bit Dimming Modes and Curves
Specifications:
  • Power Connector: TRUE1, adapters available by request
  • Power: Max power consumption (1200W) 100-240V - 50/60Hz
  • Data Connector: XLR5 in/out, RJ45 Ethernet In/Out
Shipping/Weight:
  • Fixture with brackets, clamps & safety cable: 64 lbs
  • Typically ships (3) in a Long Standard Case
CYCKB-72

KL Batten 72

PDF file icon KL Batten 72 Datasheet
