MLD 208

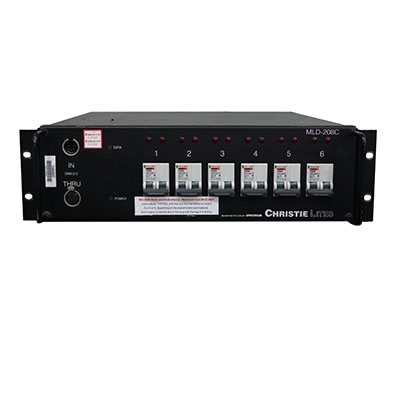

Distro MLD-208 C-5 to 6*L6-15 DMXOPTO

Distro MLD-208 C-5 to 6*L6-15 DMXOPTO

6 Way 208V Distro

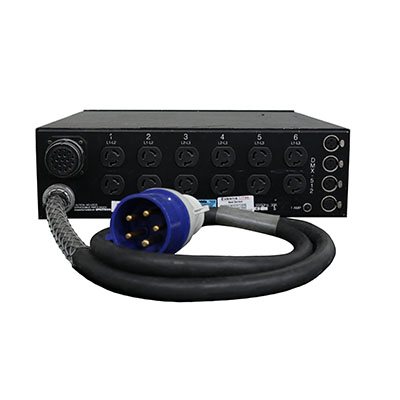

  • (6) 208V L6-15 duplex twistlock outputs
  • (1) Socapex Output
  • 30Amp C5 Input
  • Has power indicator lights above each breaker
  • Built-in DMX splitter with DMX thru, (2)3 Pin DMX and (2)5 Pin DMX isolated outputs
  • 100% duty cycle breakers
  • Rackmount (3U)
  • Typically ships in a Distro Rack Case
  • Christie Lites uses a unique 208v Socapex pin-out to avoid accidents if a 120v breakout is attached in error. Details are contained in the document entitled “Christie Lites Socapex 208v Pinout”. Christie Lites breakouts MUST be ordered when using non-Christie Lites cabling. Please note that Christie Lites 208v breakouts use a PowerCON TRUE1 connector. L6-15 or L6-20 adapters are available on request.

MLD 208

AC Lighting
