MLD Main

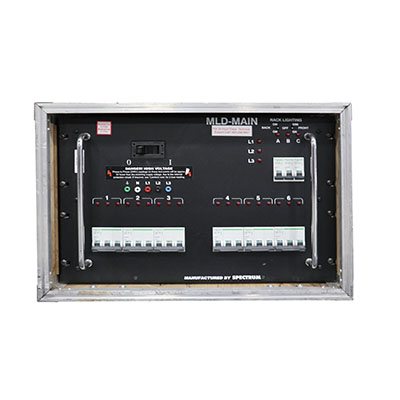

MLD Main Front

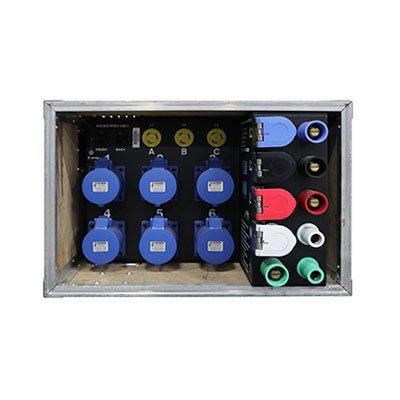

MLD Main Back

Main power supply unit. Provides power to the MLD 208 and 120 distros.

(6) 30amp C5 outputs with individual breakers and indicators
(3) L5-20 twistlock convenience outputs with individual breakers and indicators
E1016 Cam-Lok input and Cam-Lok thru connectors. Reversed Ground and Neutral
225amp main breaker
Voltage test points on the front panel for easy metering
Rackmount (6U)
Typically ships in a Distro Rack Case

Weight:
MLD Main: 63 lbs
