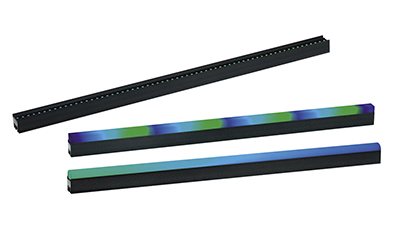

VDO Sceptron 10
The VDO Sceptron 10 is a linear LED video fixture
available in 320mm and 1000mm models.
Features:
- 750 lumen per meter calibrated
- 10 mm pixel pitch
- 16-bit per color image processing technology
- Setting and addressing: P3 System Controller or RDM-compliant controller
- Supported by integrated power and data processor (P3 PowerPort 1500) and simple cabling system
- See accessory tab for system set up details
Specifications:
- Power Connector: Combined power/data 6-pin custom (BBD) in/out
- Power: Max power consumption 320mm (10W), 1000mm (30W)
- Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
- Firmware Version: 2.4.1
Shipping/Weight:
Fixture with brackets, clamps & safety cable:
1000mm: 5 lbs
320mm: 3 lbs
Typically ships: 320mm (81) in a Standard Case, 1000mm (27) in a Standard Case
CYCSC-P1 (1000mm), CYCSC-P2 (320mm)
P3-050 System Controller
P3-050 System Controller is a compact video processor.
- Drives up to 100.000 pixels
- Built-in scaler and mapper
- DVI-D input up to 1920x1080
- Built-in GUI (Graphical User Interface) including easy setup wizards
- Real time visualization of the video mapping within the GUI (Graphical User interface)
- Integration with lighting controls (DMX & Art-NET) and automation systems
- Power Connector: Edison
- Software Version: 6.0.2
All connected products report status and problems back to the controller for easy monitoring and maintenance
P3 PowerPort 1500 Power/Data Supply
P3 PowerPort 1500 is an integrated power supply and data processor which combines stable power delivery with high-speed, high-capacity video processing.
- Set-up and addressing via P3 System Controller
- P3 input and thru to allow daisy-chaining via EtherCON RJ-45 sockets
- 4 hybrid power/data output ports via XLR4 sockets
- 10 x VDO Sceptron 10 1000mm fixtures per output, or 31 x VDO Sceptron 10 320mm fixtures per output
- 164'/50 m total length from P3 PowerPort to the last fixture in the chain, with a maximum of 32.8'/10m of fixtures per chain. (Please consult manual for complete list of limits and safety guides)
- Wall, truss and rack-mountable
- Power Connector: TRUE1
- Software Version: 3.1.0
BBD Cable
Combined power & data link cable used between Sceptron fixtures.
Available lengths: 4', 8', 16', 32', 80'
BBD to XLR4 Adapter
An adapter used to plug XLR4 from the PowerPort into the Sceptron fixtures.
BBD to Male XLR-5 & Male XLR-4 Adapter
A data injector adapter used to control Sceptron fixtures directly from a console instead of the P3 System Controller.
