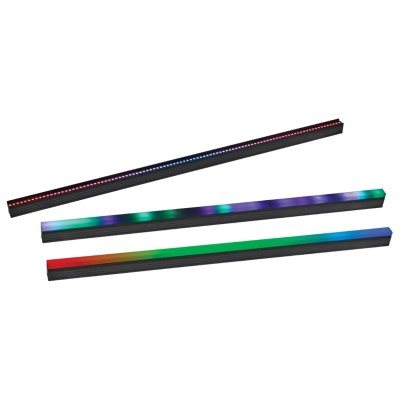

VDO Sceptron XB 320mm, 1000mm

Sceptron XB


















Features:
  • 2300 lumen per meter (full power mode), 1250 lumen per meter (half power mode)
  • 10 mm pixel pitch
  • RGBW LEDs (higher output and higher light quality (CRI / TM-30 / TLCI))
  • Art-Net, sACN & Martin P3 control
  • Easy mapping and addressing through P3 System Controller or Companion Desktop
  • P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
  • See accessory tab for system set up details
Specifications:
  • Power Connector: Combined power/data 7-pin hybrid DCE in/out
  • Power: Max power consumption 320mm (10.4W), 1000mm (30W)
  • Firmware Version:
Shipping/Weight:
  • Fixture with brackets, clamps & safety cable:
        1000mm: 5.5 lbs
          320mm: 3.5 lbs
  • Typically ships: 320mm (81) in a Standard Case, 1000mm (27) in a Standard Case
CYCSC-X1 (1000mm), CYCSC-X3 (320mm)

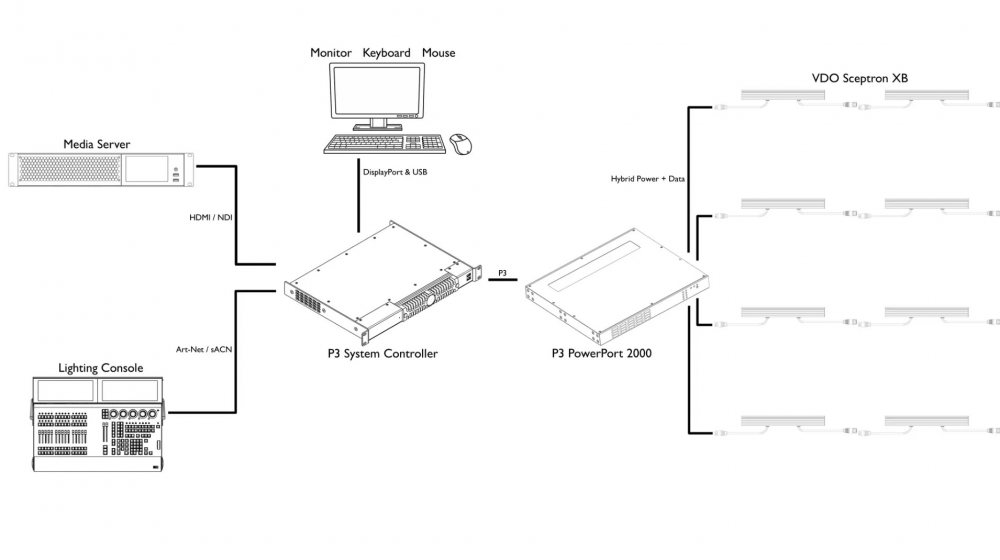

System Layout

Sceptron System


DCE Cable

Combined power & data link cable used between Sceptron XB fixtures.
Available lengths: 1m, 2.5m, 5m, 10m, 25m


P3-050 System Controller


P3-050 System Controller Front
P3-050 System Controller back

P3-050 System Controller is a compact video processor.
  • Drives up to 100.000 pixels
  • Built-in scaler and mapper
  • DVI-D input up to 1920x1080
  • Built-in GUI (Graphical User Interface) including easy setup wizards
  • Real time visualization of the video mapping within the GUI (Graphical User interface)
  • Integration with lighting controls (DMX & Art-NET) and automation systems
  • Power Connector: Edison
  • Software Version: 6.0.2
All connected products report status and problems back to the controller for easy monitoring and maintenance





P3 PowerPort 2000





P3 PowerPort 2000 Front
P3 PowerPort 2000 Back




  • P3 PowerPort 2000 delivers seamless power and data to Martin’s Creative LED fixtures
  • Built-in network switch for easy daisy-chaining
  • Can be rack, truss or wall mounted
  • 4 power+data outputs for connection of fixtures
  • Power at 208-240V AC input: 48 VDC / 10 A per port
  • Power at 100-120V AC input: 48 VDC / 6.8 A per port
  • Power Connector: TRUE1
