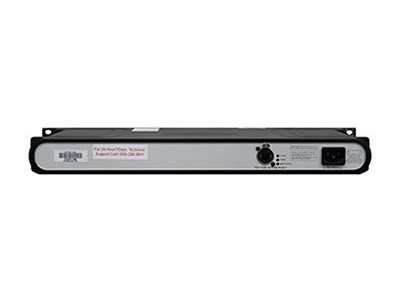

Pathport Octo Node

Pathport Octo Node


The Pathport Octo node is an eight-port rackmountable node. Standard operating features include crossfade between sources, configure DMX speed and signal loss behavior port-by-port, and multi-protocol support. Even automatically merge different DMX-over-Ethernet protocols together.
  • 8 ports, individually configurable as inputs or outputs
  • Status LEDs provide instant confirmation of port direction and activity
  • address support for up to 128 universes
  • DMX routing on a universe or channel-by-channel basis
  • Each output can merge and/or prioritize up to eight input sources on a channel-by-channel basis
  • Front panel display provides diagnostics and basic configuration
  • Supports the E1.31 Streaming ACN standard (Net3) as well as the ArtNet, Pathport and Shownet protocols
  • Power Connector: IEC Edison
  • Typically ships in a Distro Rack Case
  • Software version: 3.7.2

Pathport Octo Node

Pathway Connectivity
