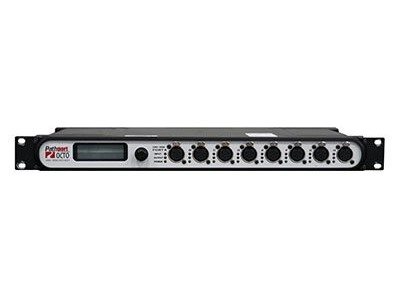

Pathport Octo Node
The Pathport Octo node is an eight-port rackmountable node. Standard operating features include crossfade between sources, configure DMX speed and signal loss behavior port-by-port, and multi-protocol support. Even automatically merge different DMX-over-Ethernet protocols together.
- 8 ports, individually configurable as inputs or outputs
- Status LEDs provide instant confirmation of port direction and activity
- Address support for up to 128 universes
- DMX routing on a universe or channel-by-channel basis
- Each output can merge and/or prioritize up to eight input sources on a channel-by-channel basis
- Front panel display provides diagnostics and basic configuration
- Supports the E1.31 Streaming ACN standard (Net3) as well as the ArtNet, Pathport and Shownet protocols
- Power Connector: TRUE1
- Typically ships in a Distro Rack Case
- Software version: GEN1 6.1.0 / GEN2 6.1.5
Weight:
Pathport Octo Node: 5 lbs
CONNO-P8
